PS10 Valve Proximity Switch
PS10 Valve Proximity Switch - Lapar Valve
Feature
- Automatic control accessories
- Easy to install and operate
- Clear instructions, easy to identify
Parameter
| Name |
PS10 Proximity Switch for Valves |
| Operating Zone |
3mm |
| Rated Supply Voltage |
DC 8V |
| Switching Capacity |
0~100Hz |
| Differential Travel |
Typ. 5% |
| Short Circuit Protection |
Yes |
| Output State Indication |
Yellow LED |
| Standard |
DIN EN 60947-5-6(NAMUR) |
| Working Temperature |
-25~100℃(248~373K) |
| Materials of Case |
PBT |
| Degree of Protection |
IP68 |
| Explosion Proof Grade |
II 1G Ex ia IIC T6 |

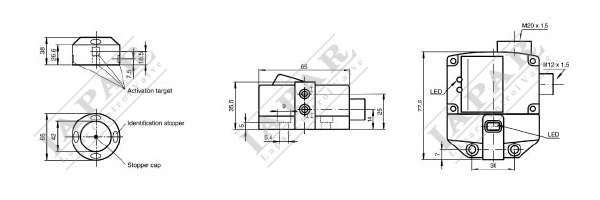

PS10 Valve Proximity Switch Dimensions
![PS10 Valve Proximity Switch Dimensions - Lapar Valve]( "PS10 Valve Proximity Switch Dimension")
