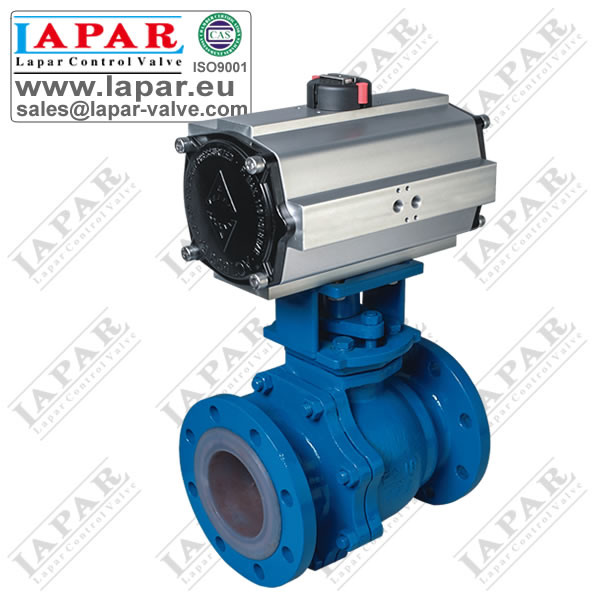

Teflon Lined Ball Valve
Design Feature
- Soft seal seat, good sealing performance
- No leakage connector design
- Small flow resistance, flow capacity
- Applicable chemical medium
- Simple structure, easy operation and maintenance
Parameter
| Actuator | Electric, Pneumatic, Handwheel, Handle |
| Control | On-off, Modulating, Inteligent |
| DN | 15~250mm |
| Pressure | 1.6~4.0Mpa |
| Temperature | PTFE (F4): -30~50°C FEP (F6): -30~120°C |
| Connection | Flange |
| Structure | 2-piece Type |
| Body Material | SS316, SS304, WCB |
| Ball Material | SS316, SS304, WCB |
| Sealing Material | PTFE (F4), FEP (F6) |
| Medium | Acids, alkalis, strong oxidizing agents and etc |
| Option | Limit Switch, Positioner, Solenoid Valve, Pressure-relief Valve |

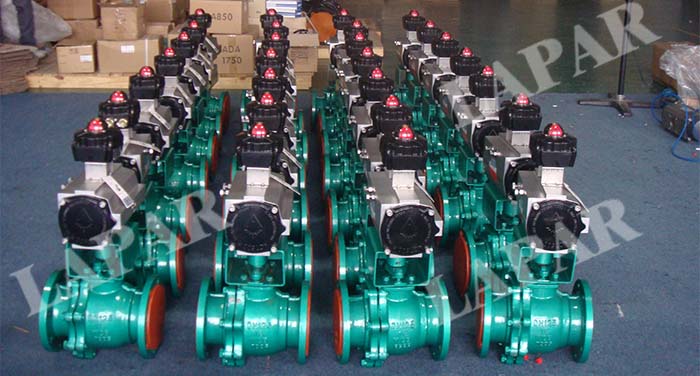

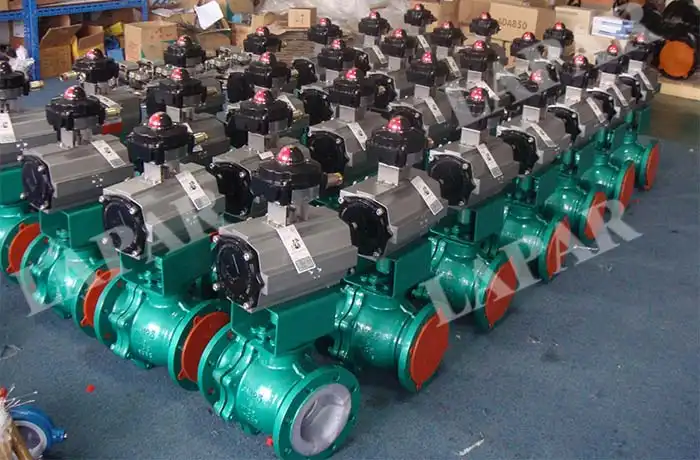

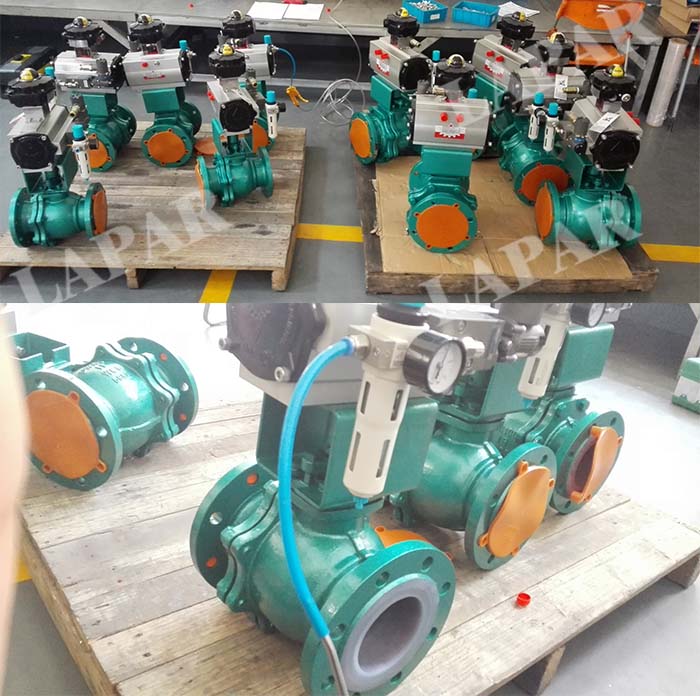

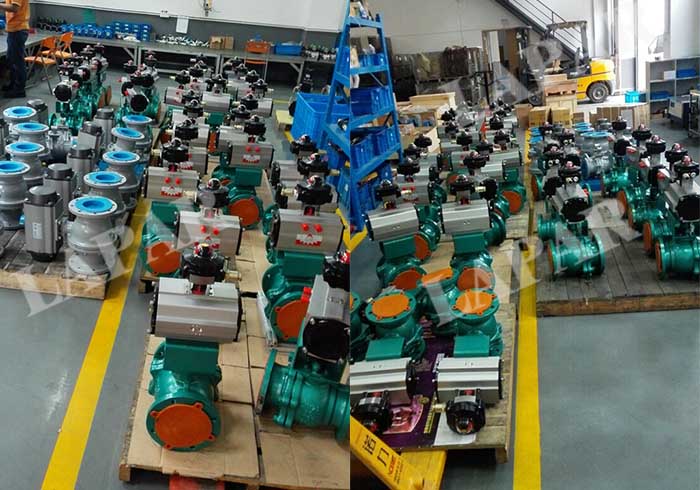

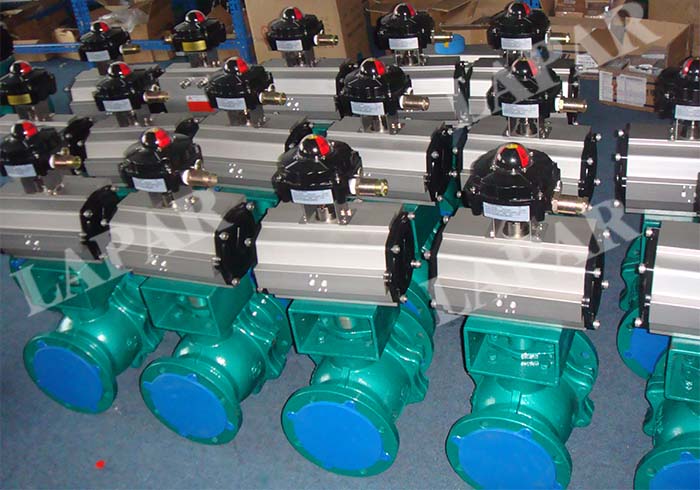

Pneumatic Telfon Lined Ball Valves, Fluorine Lining Ball Valves
