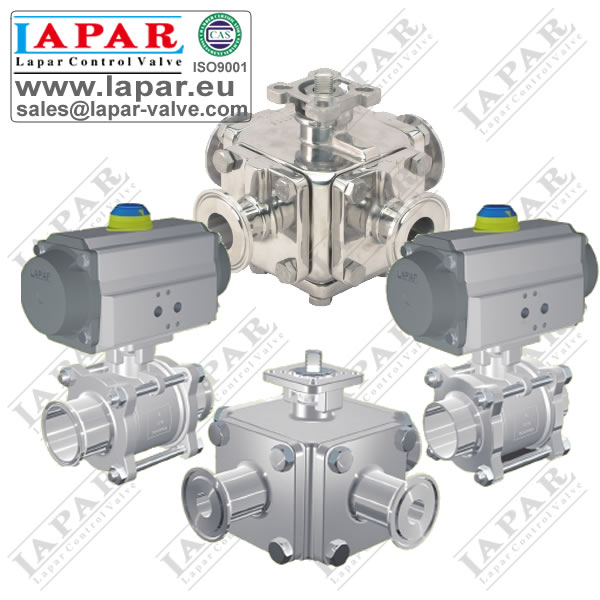

Sanitary Ball Valve
Design Feature
- Pore size consistent with the pipeline, no precipitate
- Flow channel wall 240Grit polishing, to ensure smooth flow channel
- PTFE seal with full package, not dead, easy to clean
- Double stem packing with shrapnel on the pressure plate type device
Parameter
| Actuator | Electric, Pneumatic, Handwheel, Handle |
| Control | On-off, Modulating, Inteligent |
| DN | 50~100mm |
| Pressure | 1.0~6.3Mpa |
| Temperature | Working Temperature: -20℃~150℃ Sterilization Temperature: 150℃(Max 20Min) |
| Connection | Clamp, Weld |
| Structure | 3-piece Type, 3-way L Type, 3-way T Type |
| Metal material | Contact Product Part: 304/316L(14307/1.4404) Forged No-contact Product Part: 304/316L(1.4301) Provide EN 10204.3.1B certificate |
| Sealing Material | Standard: PTFE All Seal material coply with FDA 177.2600 |
| Surface Treatment | Internal Surface: R≤0.8um External Surface: R≤1.6um |
| Medium | Food, Beverages, Cosmetic, Wine, etc |
| Option | Limit Switch, Positioner, Solenoid Valve, Pressure-relief Valve |
