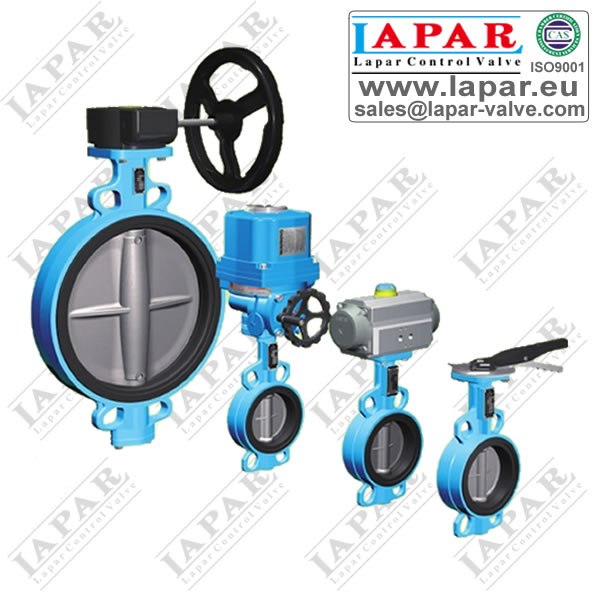

LPB11 Rubber Seat Butterfly Valves, with Wafer, Flange or Lug type End connection
Design Feature
- Optional multi-pressure stage
- Special design will not cause death card
- Torque and lighter, easy to replace the seat
- Unique shape
- Frame structure
- Coated disc
Parameter
| Actuator | Electric, Pneumatic, Handwheel, Handle |
| Control | On-off, Modulating, Inteligent |
| DN | 40~1200mm |
| Pressure | 1.0~2.5Mpa |
| Temperature | EPDM: -29~120°C, FPM: -29~150°C EPT: -20~140°C, CR: -29~80°C NBR: -29~80°C, SI: -29~200°C |
| Connection | Flange, Wafer |
| Structure | A Type, LT Type |
| Body Material | SS316L, SS316, SS304, SS304L, WCB, Casting Iron, Ductile Iron |
| Disc Material | SS316L, SS316, SS304L, Casting Iron, WCB, B148, Ductile Iron+Nylon 11, CE3MN |
| Seat Material | NBR, EPDM, EPT, FPM, CR, SI |
| Medium | Water, Liquid |
| Option | Limit Switch, Positioner, Solenoid Valve, Pressure-relief Valve |
Wafer Pneumatic Actuated Butterfly Valve
Wafer ELectric Actuated Butterfly Valve

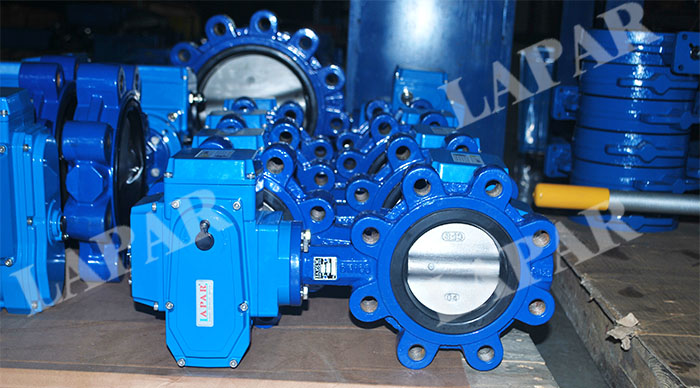

Lug type ELectric Actuated Butterfly Valve

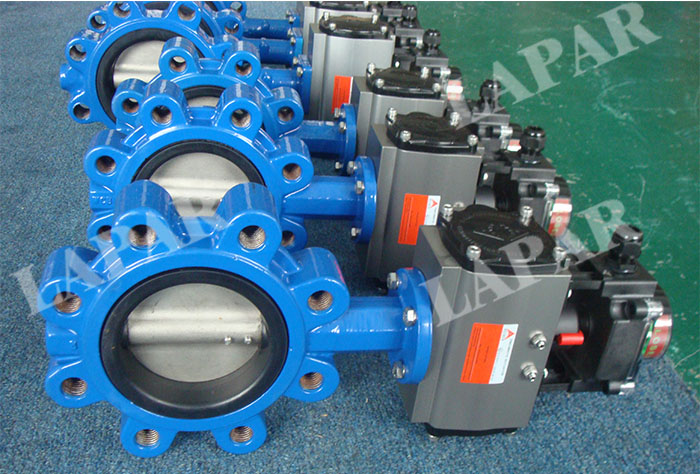

Lug type Pneumatic Actuated Butterfly Valve
