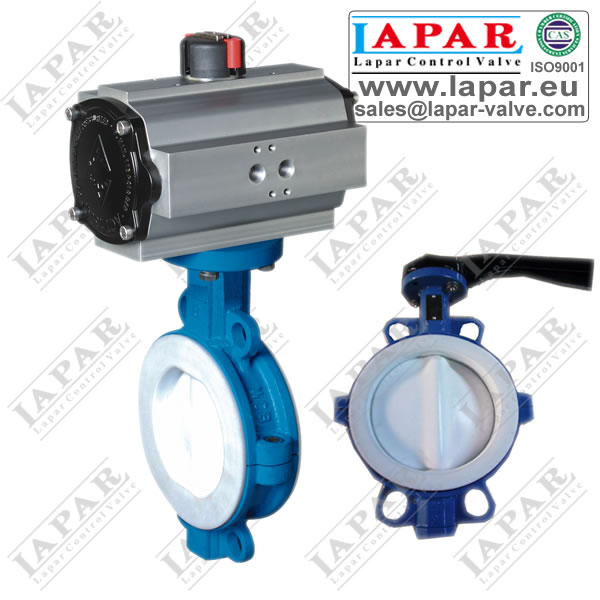

Fluorine Lined Butterfly Valve, Chemical Buttefly Valve
Design Feature
- Optional stainless steel body
- Applicable chemical medium
- Flange contection
- Disc in the hole under the friction surface using spherical design, torque is smaller, better sealing
Parameter
| Actuator | Electric, Pneumatic, Handwheel, Handle |
| Control | On-off, Modulating, Inteligent |
| DN | 50~600mm |
| Pressure | 1.0~1.6Mpa |
| Temperature | PTFE: -29~150°C FEP: -30~100°C |
| Connection | Wafer |
| Structure | A Type, LT Type |
| Body Material | SS316, SS304, WCB, Casting Iron, Ductile Iron |
| Disc Material | SS316, SS304, WCB, Casting Iron, Ductile Iron |
| Seat Material | PTFE (F4), FEP (F6) |
| Medium | Acids, Alkalis, Strong oxidizing agents |
| Option | Limit Switch, Positioner, Solenoid Valve, Pressure-relief Valve |
Pneumatic Fluorine Lined Butterfly Valve
Electric Fluorine Lined Butterfly Valve
